CNC Stepper Motor Driver 3 Axis TB6560 Stepper Motor Driver Controller

TB6560 3 Axis CNC Stepper Motor Driver 3 Axis TB6560 Stepper Motor Driver Controller

Description:

This 3 axis stepper motor driver controller board adopts high-powered professional controller chip TB6560, making microcomputer applies controller function to driver board to form the smallest controller system in accordance with user’s requirements.

• Cable Length: Approx. 55.5 inch / 141 cm
• Board Diameter (L x W x H): Approx. 5.9 x 5.1 x 1 inch / 15 x 13 x 2.5 cm
• Standard parallel interface, supports software MACH2, MACH3, KCAM4
• With 4 changeable electric current: 0.7 A, 1.75 A, 2.6 A, 3.5 A (peak value)
• Comes with formal photoelectric coupler
• Supports four segmentation choices: 1, 1 / 2, 1 / 8, 1 / 16
• Impulse frequency can up to 15 KHZ at most
• Semi-flow control function
• Principle axis relay output
• With limit interface
• Adopts new-style bipolar constant current chopping technology, making working precision accurate, vibration small, noise low and running steady
• Can drive any mall and medium-sized two-phase or four-phase hybrid stepping motor
  Specification:
• With a 4-axis control interface extension
• With a relay output to control the spindle.
• Using RC +7414 automatic semi-flow;
• 12-36V single power supply switching power supply chips to use as a 5V power supply, stable and heat small;
• Supports four sub-options - 1,1 / 2,1 / 4,1 / 16;
• Supports 4 modes - a mixed-mode, fast mode, slow mode, normal mode;
• With a limit or STOP Interface (DB9 standard interface);
• With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment;
• Standard parallel port interface, support for MACH2, KCAM4 series software;
• With 3-way 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive;
• This version has the following functions and features
• With a fan interface, you can add any fan.
• Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum.
• Spindle relay output, easy to use software such as control of mach3 spindle start and stop.
• Section 5-axis expansion, to facilitate your needs 5-axis machining 5-axis when the expansion of the first.
• High-speed opto DCDC completely isolated, truly protect your computer.

1 x 3 axis stepper motor driver controller board

30A Brushless Motor Speed Controller RC BEC ESC T-rex 450 V2 Helicopter Boat SU

Features:
BEC Power: Yes
Cut Off Voltage: 4V
BEC: Yes
BEC Power: 1.5A/5V
Reset: Throttle Lowest Con.
Current: 30A
Battery Range: 5-10 Cells

Specification:
Size: 57mm x 25mm x 8mm
Net weight: 27g
Package weight: 33g
Color: Yellow
Original box: NO

Packing Content:
1 x 30A Speed Controller ESC

FL-2 DC 75mV 50A Shunt Resistor For Meter Amp Analog Panel Ammeter VoltMeter

The fixed setpoint shunt is a suitable the attached external shunt for measuring DC current in 10kA less directly acting on the analog display instrument together with the use in order to expand the scope of the DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal.



Specifications:



1.Accuracy level :2-4000A, 0.5 level；5000-10000A， 1 level.



2.Environmental conditions: -40 ~ +60 ℃, the relative temperature ≤ 95% (35 ° C)



3.Overload performance: 120% of rated current, 2 hours



4.Voltage drop: 75mV



5.Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C; rated current of 50A does not exceed 120 ° C.



Weight: 72g

Dimension (L x W x H): (Approx.)  12cm x 2.6cm x 1.8cm


Package included:1 x 50A 75mV DC Shunt Resistor

Xilinx Platform USB Download Cable Jtag Programmer for FPGA CPLD C-Mod XC2C64A

Xilinx Platform USB Download Cable Jtag Programmer for FPGA CPLD C-Mod XC2C64A

.Support all Xilinx devices:        All Virtex FPGA families        All Spartan FPGA families        XC9500/XC9500XL/XC9500XV CPLDs         CoolRunner XPLA3/ CoolRunner-II CPLDs         XC 18V00 ISP PROMs          XCF00S/XCF00P Platform Flash PROMs          XC4000 series FPGAs 3. Supported on Windows and Red Hat Enterprise Linux 4. Work with impact , chipscope pro and microblaze embedded processer debuging 5.support target system using 5.0V TTL,3.3V LVTTL/LVCMOS, 2.5V, 1.8V,1.5V 6. Apply to Xilinx CPLD / FPGA chips download debugging. 7. Support JTAG, Slave Serial, SPI download mode, can configure all Xilinx devices. 8. Xilinx Platform with USB Cable fully compatible. 9. Target device to download the clock options, up to 24MHz. 10. Support iMPACT and ChipScope. 11. Firmware can be updated automatically.

 NB: Device intended for advanced users, handle with care and read all available documents before using

Package :

1 x USB Download and Programmer Adapter   1 x 6-pin 2.54mm  flat cable,  1 x 10-pin 2.54mm pitch 15cm flat cable,    1 x 14-pin 2.0mm pitch 15cm flat cable, 1 x 14-pin 2.54mm pitch 15cm flat cable 1x 7-pin fly duppont cables 1x cable adapter  1 x USB Cable

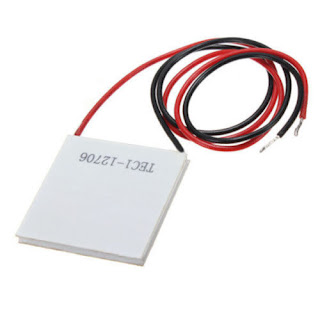

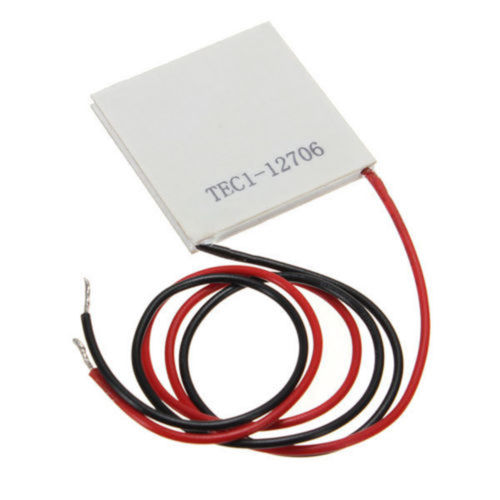

TEC1-12706 Thermoelectric Cooler Peltier 12V 60W 92Wmax

Rated voltage: 12v
Rated current of 4.5A,
Power :50 - 60W
Maximum temperature: 60o Celsius
Dimensions: 4x4x0.4cm

Connected to a 12-volt power supply the cell will have a temperature differential between the two sides of about 20oC(68oF).
Important: do not connect the cell to a power supply for more than a few seconds without a heat-sink on the hot side otherwise there will be internal overheating and destruction of the Peltier cell.

Installation
This cooling Peltier cell is very simple to install and use.
Before installation, you must provide a dry environment and allow for any condensation from the cold side to drain away and not to come in contact with the operating cell.
Connect the two leads of the Peltier cell to an appropriate power supply and importantly, observe the correct lead polarity and attach an adequate heat-sink with a quality thermal conducting grease applied to the warm side of the cell; you will feel the warm side and the opposite cool side of the operating cell. It is important to identify both the correct lead polarity and the cooling/heating sides of the device.
If you want a greater cooling differential, it is recommended to use two Peltier cells, namely, one stacked above the other with the hot side of the upper cell in contact with the cool side of the lower one; an experiment proved the two stacked cell cooling effect is much better than the single-stage. Similarly a three cell stack produces an even greater temperature differential but requires a larger capacity power supply support.

PFM Control DC-DC USB 0.9V-5V to 5V dc Boost Step-up Power Supply                                                                         Module



Product information

1.input voltage: 0.9-5V DC 2.Mini PFM Control 3.Output voltage: 5V DC 4.Output Current: 500-600mA 5.High conversion efficiency, maximum to 96% 6.Small dimension Applications: DIY a mobile power supply, only need one battery, you can output 5V voltage for your phone, MP3, MP4, PSP charger, very easy. In order to power your electronic devices when your device needs 5V power supply, when you only have lithium battery, this module can be directly step-up to 5V, solve your problems.

DC 0-100V 0-50A Led Panel Volt Amp Combo Meter Digital Voltmeter Ammeter

100% Brand New. Supply voltage: 4.5-30V (wide range) Test voltage: 0 ~ 100V Color of LED light: Red Size: 4.7 x 2.8 x 1.7cm (1inch=2.54cm) The minimum resolution below 10V: 0.01V The minimum resolution above 10V: 0.1V Display screen: 1.36 inch LED Operating current:<20mA Measuring speed:≥ 500mS / times Accuracy: 1%(± 1 word) Minimum operating voltage: +4.5 V Maximum operating voltage: +30 V Operating Humidity:1080% Operating temperatures: -10+65 Operating pressure: 80 ~ 106kPa Avoid direct sunlight Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Shunt have to be purchased differently. Thank you! .This instrument test voltage, current, power supply is taken from the test loop.No additional power supply The the instrument test voltage supply range: DC4.5 ~ 30V,The reverse does not burn,  Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burned  The instrument is equipped with five wiring.Convenient access to car / battery car / motorcycle car line,,Used to monitor the battery voltage,,Grasp the battery voltage state,can also be used for other products, the use of Voltage/current measurement.  The instrument with five lines:  Thin black line: Header supply ground  The Thin Red Line: Header powered regular (Note, thin red and black line between the voltage can not exceed 30V)  Thick black lines: public test end  Thick red line: measuring the positive voltage input terminal  Yellow lines: current input terminal; header uses of design, the measuring end of the ground and the ground of the power supply side is the same, it is only then measured the back of the device, as shown in the following figure, the wrong will burn (such as single voltmeter, it is recommended that the yellow line with black lines together, to prevent outside interference cause ammeter digital flashing)Technical parameters:  0.Supply voltage: 4.5 30V (wide range)  1.Test voltage: 0 ~ 100V; minimum resolution: 0.1V  2.Test current range: 50A resolution: 0.1A (requires an external shunt)(connect with 50A/75mV shunt) Does not include)  3.Operating Current: <60mA  4.Display: 0.28 "LED, two-color (red and blue) colors  5.Dimensions: 48 × 29 × 21 mm  6.Mounting cutout: 45.5 × 26.5 mm  7.Measurement rate: ≥ 500mS / times  8.Measurement accuracy: 1% (± 1 words)  9.Extreme working conditions:  9.1.The minimum Operating voltage: +4.5 V  9.2.Maximum working voltage: +30 V  9.3.Operating temperature: -10 to +65  9.4.Operating Humidity: 10 to 80% (non-condensing)  9.5.Working pressure: 80 ~ 106kPa

MB102 Breadboard Power Supply Module 3.3V 5V For Arduino Solderless Breadboard

Specification:

1.Brand new and high quality.
2.Breadboard power supply module, compatible with 5 V, 3.3 V
Apply to MB102 breadboard
3.Input voltage: 6.5-12 V (DC) or USB power supply
4.Output voltage: 3.3V/5V can switch over
5.Maximum output current: <700 ma
6.Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
7.On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
8.Size:5.3cm x 3.5cm

Board V1.2 A4988 Big Easy Driver 2A Phase 3D Printer Stepper Motor Driver Board

Description: Replacement:ROB-11876. We’ve fixed a few silk screen errors on the next rev of this board including an incorrect current adjustment arrow indicator, go check it out! This page is for reference only.

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to 2A/phase. It is based on the Allegro A4988 stepper driver chip. It’s the next version of the popular Easy Driver board.

Each BigEasyDriver can drive up to about 2A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 35V, and includes on-board 5V/3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling, a heatsink is recommended for loads approaching 2A/phase. You can find the recommended heatsink in the related items below.

Note: The arrow indicators on the current adjustment potentiometer is backwards. Keep this in mind if you’re adjusting the current limits.

Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to them for product support and continued development.

Features:

• Bi-polar Microstepping Driver
• 2A/Phase Max
• Max Motor Drive Voltage: 35V
• On-board 5V/3.3V Regulation
